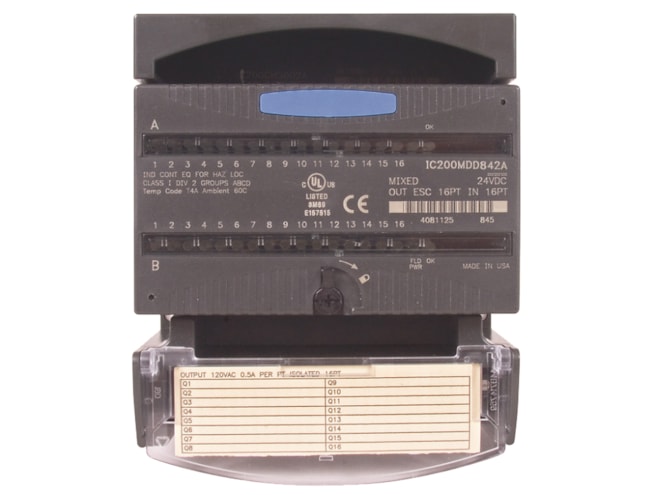

GE Fanuc IC200MDD842

GE Fanuc IC200MDD842 Overview:

The GE Fanuc IC200MDD842 is a compact, high-density mixed I/O module from the VersaMax series. It combines 16 discrete input channels and 16 discrete output channels in one unit, offering a space-saving and efficient solution for digital signal control in a wide variety of industrial automation applications. Its integration of sourcing inputs and outputs makes it ideal for controlling and monitoring equipment with minimal wiring complexity.

Key Features:

• Dual-Function Module:
  The IC200MDD842 combines 16 input and 16 output points into one unit, minimizing panel space and reducing the need for additional modules.

• Input Specifications:

  • Voltage range: 0 to +30 VDC

  • Logical ON: ≥ +15 VDC; Logical OFF: ≤ +5 VDC

  • Input impedance: ~10 kΩ

  • Fast response time: Typical 0.5 ms

• Output Specifications:

  • Output voltage range: +18 to +30 VDC (nominal 24 VDC)

  • Current capacity: Up to 0.5 A per point

  • Protection: Short-circuit and overcurrent protection

  • Fast switching: ON/OFF response within 0.5 ms

• Electrical Isolation:
  1500 VAC isolation between logic and field devices ensures system protection from noise and transient voltage.

• LED Indicators:
  Each I/O point has its own status LED, plus system and power LEDs, simplifying diagnostics and reducing maintenance time.

Applications:

• Manufacturing Automation:
  Ideal for controlling actuators, solenoids, indicator lights, and other output devices while simultaneously reading sensor and switch inputs on production lines.

• Power and Energy Systems:
  Supports control of load relays, energy distribution systems, and automatic switching mechanisms in energy management environments.

• Building Automation:
  Manages lighting systems, HVAC, access control, and other facilities equipment in commercial and industrial buildings.

• Process Control:
  Used in process industries such as chemical, pharmaceutical, and food production to manage valve actuation and monitor alarms or status inputs.

Why Choose GE Fanuc IC200MDD842?

• Integrated Functionality:
  The mixed I/O design simplifies wiring, saves panel space, and reduces system complexity.

• Fast and Reliable:
  High-speed input and output response makes it ideal for time-critical applications.

• Advanced Protection:
  Built-in protection mechanisms improve durability and system safety, minimizing unplanned downtime.

• Flexible Compatibility:
  Standard 24 VDC input/output makes it widely compatible with industrial devices.

• Modular and Scalable:
  Fully compatible with the VersaMax family, allowing seamless integration and future expansion.

Conclusion:

The GE Fanuc IC200MDD842 offers a powerful, compact, and cost-effective solution for digital control in industrial systems. Its dual-function design, protective features, and fast response capabilities make it an excellent choice for modern automation applications demanding performance, reliability, and efficiency.
