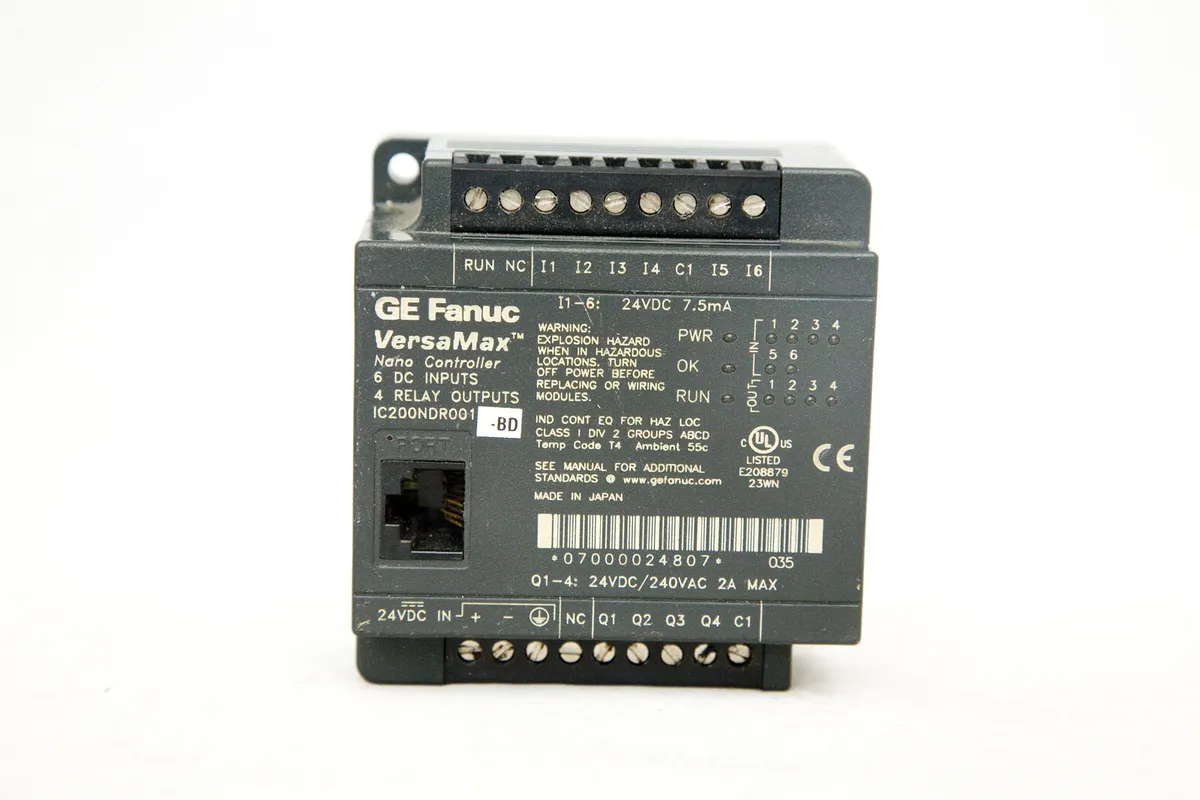

GE Fanuc IC200NDR001

Product Overview: GE Fanuc IC200NDR001

The GE Fanuc IC200NDR001 is a member of the VersaMax Micro/Nano family of programmable logic controllers (PLCs). It is a compact, fixed I/O CPU unit designed for small-scale automation tasks. This module integrates both discrete input and relay output points into a single housing, and is ideal for applications requiring simple logic operations, cost-efficiency, and space-saving design.

It provides 6 discrete inputs and 4 relay outputs, operates with a 24VDC power supply, and includes an RS-232 serial communication port. The unit is designed for installation in compact control panels or decentralized automation nodes. All I/O points are fixed, reducing wiring complexity and module selection time.

Key Features

• Digital Inputs:

  • Total of 6 discrete inputs

  • Operating voltage: 24VDC nominal

  • Sink/source input compatibility

  • Input filter to suppress electrical noise

  • Status indication via onboard LEDs

  • Two of the inputs can be configured for high-speed counter functionality

• Relay Outputs:

  • Total of 4 Form A (SPST) relay outputs

  • Switching capacity: 2A at 30VDC or 250VAC resistive

  • Isolation between outputs and logic

  • Mechanical relay design suitable for AC and DC loads

• Power Supply:

  • Requires 24VDC input power

  • Typical current draw: approximately 140 mA at 24VDC (depending on output load)

  • Reverse polarity protection built-in

• Program Memory:

  • Flash memory for user application storage (non-volatile)

  • Battery-free retention of user logic and configuration

• Execution Speed:

  • Fast processing of Boolean instructions (~1.2 µs per instruction)

  • Suitable for time-critical discrete control applications

• Programming Environment:

  • Supports programming via VersaPro, Proficy Machine Edition (Logic Developer), or equivalent GE software

  • Ladder logic programming support

  • User memory allocation for logic, variables, and register data

• Communication:

  • One RS-232 serial port (RJ45), supporting GE SNP/SNP-X and Modbus RTU slave protocols

  • Configurable baud rate and port settings

• Diagnostics and Indicators:

  • Onboard status LEDs for power, run/stop, fault, and I/O point status

  • Built-in self-diagnostics for system integrity checks

  • Watchdog timer for CPU health monitoring

• Environmental Ratings:

  • Operating temperature: 0 to 55°C

  • Storage temperature: -40 to 70°C

  • Humidity: 5–95% non-condensing

  • Vibration and shock tested to industrial standards

• Physical Characteristics:

  • DIN rail or panel mounting

  • Compact footprint (approx. 90mm x 100mm)

  • Screw terminals for I/O and power wiring

Applications

The IC200NDR001 is used across a broad range of discrete control and monitoring tasks where a simple, reliable PLC is needed without the complexity of modular systems:

1. Conveyor and Material Handling Systems
   It controls motor starters, photoelectric sensors, and limit switches to automate conveyance and sorting.

2. Building Automation
   Manages lighting circuits, door actuators, and fan control for small facilities or remote building areas.

3. Water Pumping Stations and Utility Controls
   Controls start/stop cycles of pumps, monitors tank levels, and interfaces with SCADA systems via serial communication.

4. OEM Equipment Integration
   Common in compact industrial machines where cost, space, and simplicity are key—such as small packaging or labeling systems.

5. Batch Process Control
   Used for sequential control in low-complexity batch mixing, heating, or filling applications.

6. Infrastructure Monitoring
   Deployed in infrastructure control cabinets (e.g., street lighting, traffic signal boxes) for status reporting and automation logic.

Why Choose GE Fanuc IC200NDR001

• Space-Efficient Design
  The all-in-one fixed I/O format eliminates the need for I/O expansion modules, ideal for tight panel spaces and mobile equipment.

• Reliable Relay Output Performance
  Relay outputs support AC and DC load control, making the unit versatile across electromechanical and electronic switching applications.

• Ease of Programming and Deployment
  Compatible with standard GE programming tools, the IC200NDR001 offers straightforward logic development and commissioning.

• Industrial Robustness
  Designed to operate in demanding industrial conditions, with vibration/shock resistance and a wide operating temperature range.

• Low Total Cost of Ownership
  Combines CPU and I/O functions in a single device, simplifying procurement, installation, and maintenance while minimizing wiring costs.

• Proven Platform and Ecosystem
  Part of the established VersaMax line, the IC200NDR001 benefits from GE Fanuc’s long-term support, firmware updates, and integration consistency across their control products.

• Flexible Communication
  The built-in RS-232 port enables integration with HMIs, SCADA, or master controllers using standard industrial protocols.

Conclusion

The GE Fanuc IC200NDR001 is a practical and efficient choice for discrete control applications requiring a compact PLC with fixed I/O. It offers essential control capabilities with reliable electrical performance, making it a dependable choice in both industrial and commercial environments. Its simplicity, durability, and cost-effectiveness make it especially well-suited for OEM machine builders, facility automation, and localized control tasks within larger systems.
