GE Fanuc IC694MDL240

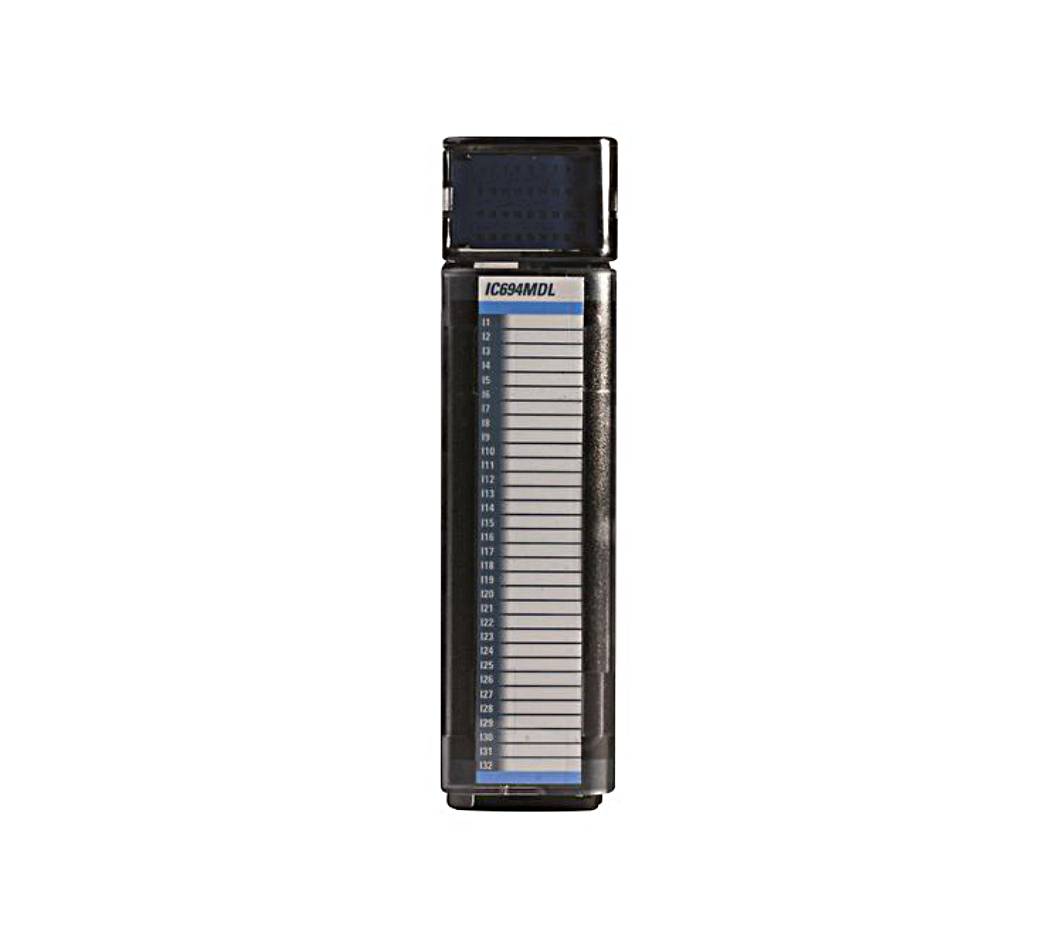

GE Fanuc IC694MDL240 Product Overview

The GE Fanuc IC694MDL240 is a 120V AC input module designed for PACSystems RX3i programmable automation controllers (PACs). It provides 16 input points that share a common power input terminal. This module is built for high-reliability industrial applications, making it an excellent choice for real-time monitoring and control in automated systems.

Key Features

1. Input Configuration

   • 16 input points for 120V AC signal input.

   • Each input point draws 12mA, ensuring signal stability.

2. Voltage and Frequency Compatibility

   • Operates within an input voltage range of 0-132V AC.

   • Supports 50/60Hz, making it globally adaptable.

3. Fast Response Time

   • Typical on-state response time: 30ms.

   • Maximum off-state response time: 45ms.

4. LED Indicators

   • 16 green LEDs provide real-time input status monitoring.

5. High Isolation

   • 250V AC continuous isolation prevents electrical interference.

   • 1500V AC 1-minute isolation enhances safety and system reliability.

6. Low Power Consumption

   • Draws only 90mA from the 5V DC backplane.

7. Modular Design

   • Fully compatible with GE Fanuc PACSystems RX3i.

   • Supports DIN rail mounting for easy maintenance and expansion.

Applications

This module is widely used in industrial automation applications, including:

1. Manufacturing

   • Monitoring limit switches, sensors, and start/stop buttons.

   • Suitable for robotics and industrial machinery input processing.

2. Energy Management

   • Used in power monitoring systems to collect AC input signals.

   • Ideal for renewable energy control systems (wind, solar).

3. Process Control

   • Used in chemical, pharmaceutical, and food processing industries.

   • Controls motors, pumps, and valves for efficient production.

4. Building Automation

   • Monitors HVAC systems (heating, ventilation, and air conditioning).

   • Controls lighting, security, and elevator systems.

Why Choose GE Fanuc IC694MDL240?

1. Reliable Brand

   • GE Fanuc has years of experience in industrial control systems.

   • Rigorously tested for harsh industrial environments.

2. Highly Compatible and Easy Integration

   • Designed for PACSystems RX3i, allowing seamless integration.

   • Compatible with GE Fanuc Proficy Machine Edition software.

3. High Safety Standards

   • High isolation design prevents power fluctuations and interference.

   • Works in EMI-prone and extreme environments.

4. Energy Efficient, Reducing Costs

   • Low power consumption, reducing operating costs.

   • LED indicators help engineers quickly diagnose issues.

5. Flexible Deployment

   • Suitable for small devices and large industrial production lines.

   • Modular design allows for future expansion.
