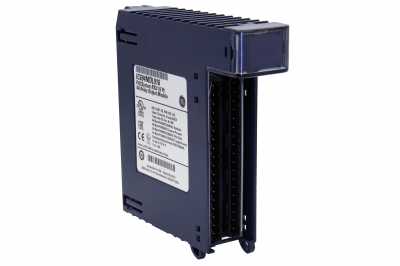

GE Fanuc IC694MDL916

Product Overview: GE Fanuc IC694MDL916

The GE Fanuc IC694MDL916 is a high-density discrete output module designed for use with the RX3i PACSystems Series. This 32-point output module offers reliable control of industrial devices requiring positive logic (sourcing type) 24VDC output signals. With its compact footprint and high output capacity, the IC694MDL916 is ideal for applications requiring dense I/O configurations, such as control panels, large machines, or automated production lines.

The module is engineered to provide fast response times, robust protection features, and seamless integration within the GE RX3i control architecture. It connects directly to field devices such as solenoids, contactors, and indicator lamps, enabling the precise actuation of machinery and processes in real time.

Key Features

• High-Density Output
  Offers 32 discrete outputs grouped in four separate groups of 8 points each, optimizing space and wiring efficiency in control cabinets.

• Sourcing Output Type
  Each output channel provides a 24VDC sourcing signal, meaning it sources current to the load—suitable for connecting to sinking-type input devices.

• Output Isolation
  Outputs are electrically isolated from each other and from the backplane to ensure electrical noise reduction and enhanced system safety.

• LED Status Indicators
  Each output has an individual LED indicator on the front panel to show its ON/OFF status, aiding in quick diagnostics and maintenance.

• Fast Response Time
  Designed for high-speed operations with minimal switching delay, ideal for real-time control systems.

• Protection Mechanisms
  Built-in protection includes short circuit and overcurrent protection for each output group, enhancing system reliability and safety.

• Module Diagnostics
  Advanced diagnostics allow for detection of failed outputs or blown fuses, which helps reduce downtime and maintenance time.

• Backplane Power Efficient
  Consumes minimal power from the backplane, contributing to the overall energy efficiency of the automation system.

Applications

• Automated Assembly Lines
  Controls actuators, motors, and light indicators involved in robotic or mechanical assembly processes.

• Material Handling Systems
  Powers and controls devices such as conveyor belts, sorters, and pick-and-place systems in warehouse and distribution environments.

• Packaging Equipment
  Operates control elements in packaging machines, labeling systems, and wrapping units.

• Automotive Manufacturing
  Widely used in welding systems, painting lines, and automated chassis assembly for its reliable high-speed output control.

• Food and Beverage Industry
  Helps in controlling valves, pumps, and indicators in batch processing and bottling systems.

• Utilities and Infrastructure
  Supports systems such as HVAC, lighting, and building automation where numerous discrete outputs are needed.

Why Choose the GE Fanuc IC694MDL916

• Scalability and Flexibility
  Its high channel density makes it ideal for expanding systems without increasing the number of required modules or rack space.

• Reliable Performance Under Industrial Conditions
  Engineered to operate under harsh industrial environments with wide temperature ranges and high electrical noise immunity.

• Ease of Maintenance
  LED indicators, group-wise fuses, and diagnostic features simplify troubleshooting and routine maintenance.

• Integrated with RX3i Systems
  Designed to work seamlessly with GE’s PACSystems RX3i controllers, ensuring smooth data exchange, configuration, and synchronization.

• Cost-Effective I/O Expansion
  Reduces the need for additional modules by offering 32 output points in a single unit, thus lowering the overall cost per I/O point.

• Secure and Durable Connections
  Compatible with field wiring terminal blocks that ensure strong connections even under high vibration or shock.

• Backed by Proven Industrial Use
  The IC694MDL916 is trusted across industries for critical operations that require high output reliability and longevity.

Conclusion

The GE Fanuc IC694MDL916 32-point discrete output module is a robust, high-performance solution for a wide range of industrial automation tasks. Its compact size, sourcing output design, and diagnostic capabilities make it a perfect fit for applications demanding reliable and efficient control of multiple field devices. Whether deployed in manufacturing, utilities, or infrastructure, the IC694MDL916 ensures dependable operation, simplified wiring, and reduced system complexity—making it a top choice for engineers and system integrators.
