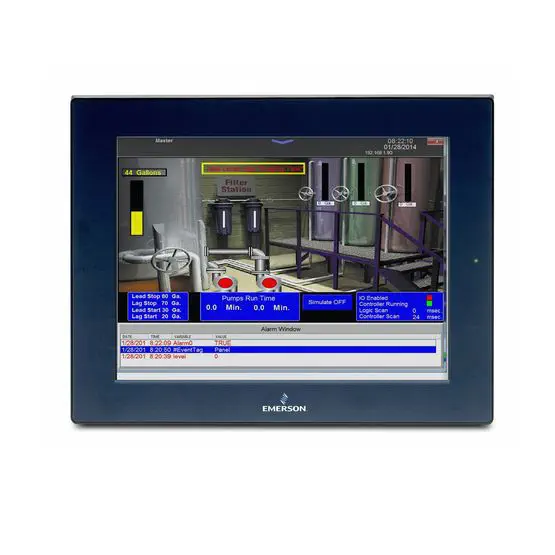

GE Fanuc IC755CBW07CDA

GE Fanuc IC755CBW07CDA – Product Overview

The GE Fanuc IC755CBW07CDA is a compact and highly versatile Human Machine Interface from the QuickPanel+ series. This device combines control, visualization, and data connectivity in a single panel, reducing system complexity and increasing engineering efficiency.

It features a 7-inch widescreen touchscreen interface with multi-touch capability, allowing for intuitive, gesture-based interactions. With its built-in processing power, industrial-grade components, and robust operating system, the IC755CBW07CDA is designed for demanding industrial environments. This unit supports both operator interface functions and basic control tasks, eliminating the need for separate PLCs in small to mid-sized automation systems.

Its rich communication capabilities, including Ethernet, serial ports, and USB, enable smooth integration with various devices, networks, and controllers. The unit is pre-configured to work seamlessly with Proficy Machine Edition software for configuration, logic control, and HMI development, enabling engineers to develop and deploy projects quickly.

Key Features

1. Integrated HMI and Control

   • Supports both visualization and logic control.

   • Reduces need for separate PLC hardware in simple to mid-level automation applications.

2. 7-Inch Widescreen Display

   • Bright, 800 x 480 resolution LCD touchscreen.

   • Supports multi-touch gestures such as pinch-to-zoom and swipe navigation.

3. Fast, Efficient Processing

   • Powered by an ARM Cortex-A8 processor running at 1 GHz.

   • Provides fast screen updates and reliable execution of embedded applications.

4. Robust Memory

   • 512 MB RAM for program execution.

   • 256 MB flash memory for storage, with optional SD card expansion.

   • 512 KB battery-backed SRAM for retaining data during power loss.

5. Reliable Operating System

   • Runs on Microsoft Windows Embedded Compact 7.

   • Supports a variety of runtime environments for flexible application deployment.

6. Extensive Connectivity

   • Two Ethernet ports for network redundancy or segmentation.

   • RS-232 and RS-485 serial ports support Modbus and other protocols.

   • USB ports for external device integration (keyboards, memory drives, etc.).

7. Durable and Industry-Ready

   • IP65-rated front panel for dust and water protection.

   • Designed for 24/7 operation in harsh industrial environments.

   • UL and CE certified, ensuring compliance with international standards.

8. Easy Engineering and Maintenance

   • Fully compatible with GE’s Proficy Machine Edition software.

   • Simplified design and programming environment help reduce development time.

   • Remote diagnostics and project updates via Ethernet improve serviceability.

Applications

The IC755CBW07CDA is well-suited for a wide range of industries and applications, including:

• Manufacturing Automation

  • Assembly lines, conveyor systems, robotic cells.

  • Real-time process visualization and operator control.

• Water and Wastewater

  • Pump station control, flow monitoring, and treatment plant interfaces.

• Food and Beverage

  • Process monitoring, packaging lines, and batch management systems.

• Energy and Power

  • Substation automation, microgrid control, and renewable energy monitoring.

• Building Management

  • HVAC systems, lighting control, and facility automation.

• OEM Machine Integration

  • Embedded into custom machinery for localized operator interaction.

Why Choose GE Fanuc IC755CBW07CDA

1. All-in-One Efficiency

   • The unit eliminates the need for separate HMI, PLC, and data recording hardware, reducing panel space, wiring, and installation costs.

2. Industrial-Grade Reliability

   • Built for continuous use in industrial settings with temperature, vibration, and electrical noise resistance.

3. Excellent User Interface

   • Modern, responsive multi-touch screen improves operator experience and reduces training time.

4. Strong Integration Capabilities

   • Compatible with major automation protocols, including Modbus TCP/IP, Ethernet/IP, and more.

   • Allows seamless communication with PLCs, drives, sensors, and SCADA systems.

5. Fast Deployment

   • Unified programming environment (Proficy Machine Edition) speeds up development cycles and reduces programming complexity.

6. Longevity and Support

   • Backed by GE’s industrial automation heritage, the device is supported with software updates, documentation, and long product life cycles.

7. Secure and Scalable

   • Supports secure network protocols and is scalable across different machine types or plant sizes.

Conclusion

The GE Fanuc IC755CBW07CDA is a robust, reliable, and feature-rich operator interface designed to meet the diverse needs of modern industrial automation. Its compact size, integrated functionality, and excellent connectivity make it a go-to solution for OEMs, system integrators, and end users looking to streamline their automation infrastructure. Whether used for standalone machines or integrated into larger systems, the IC755CBW07CDA delivers outstanding value through reduced complexity, high performance, and operational reliability.
