Product Overview

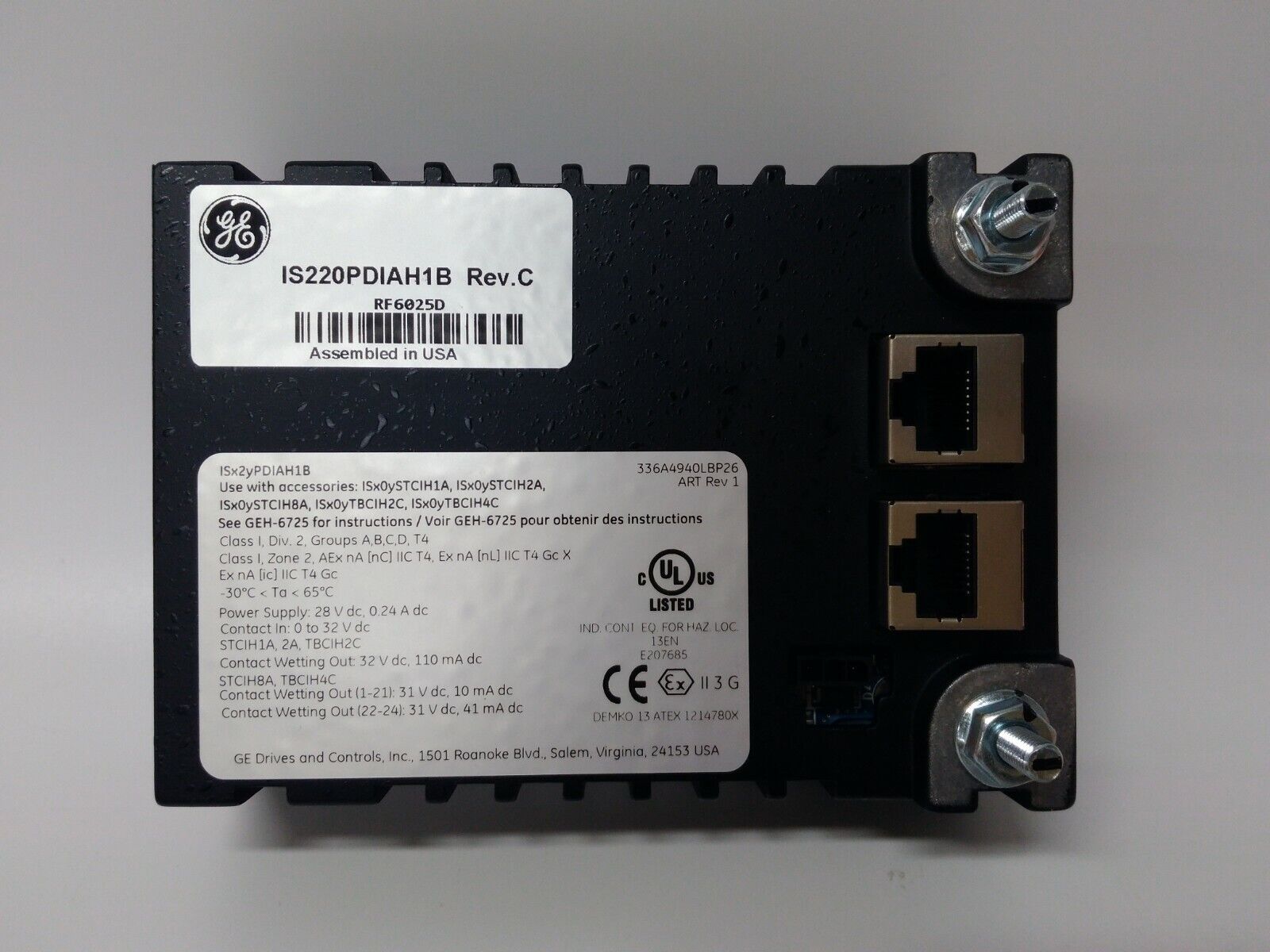

The GE Fanuc IS220PDIAH1B is an integral part of the Mark VIe control system architecture, designed to handle discrete input and output operations in demanding industrial environments. This module is a Digital Input/Output (DIO) pack that provides a direct interface between field devices and the turbine or process control system. It is typically mounted on terminal boards and used to collect signals from or send control commands to field equipment such as switches, relays, sensors, and actuators. The IS220PDIAH1B is designed to deliver reliable and accurate performance even under harsh operating conditions, making it an ideal choice for critical applications where uptime and precision are paramount.

The IS220PDIAH1B supports both simplex and redundant system configurations, providing flexibility depending on the criticality of the application. It communicates seamlessly with the controller through Ethernet, utilizing secure and deterministic communications protocols to ensure data integrity and system responsiveness. Its rugged construction, wide temperature tolerance, and compliance with industrial safety standards make it suitable for use in a variety of industries, including energy, manufacturing, and oil & gas sectors.

Key Features

• Digital I/O Capability
  The IS220PDIAH1B offers 16 channels each for digital inputs and digital outputs, providing robust support for interfacing with numerous field devices in a compact module.

• Flexible Power Supply
  Designed to operate at 24 VDC nominal voltage (with tolerances up to 28.6 VDC), making it compatible with standard industrial power systems.

• High Environmental Resistance
  The module is capable of operating within a broad ambient temperature range from -40°C to +70°C. This resilience ensures reliable operation in extreme conditions, such as outdoor installations or high-temperature industrial facilities.

• Redundancy Support
  The pack supports redundant Ethernet communications and power sources, enhancing system reliability and minimizing the risk of downtime in mission-critical applications.

• Hot-Swappable Design
  IS220PDIAH1B modules can be replaced in the field without powering down the system, reducing maintenance times and increasing system availability.

• Comprehensive Diagnostics
  Built-in self-diagnostics continuously monitor internal operations and communication health, facilitating proactive maintenance and rapid troubleshooting.

• Compact and Modular Construction
  The unit’s compact form factor allows for efficient space utilization in control panels and ease of scalability as system demands grow.

• Hazardous Area Certification
  The IS220PDIAH1B meets a variety of international certifications (such as ATEX, CE, UL, and CSA) for operation in hazardous or explosive environments.

• Direct Mounting on Terminal Boards
  The module can be directly mounted on various GE terminal boards, simplifying installation and reducing wiring complexity.

Applications

The IS220PDIAH1B module is widely utilized across a broad spectrum of industrial sectors where precise and reliable control of discrete devices is necessary. Typical application areas include:

• Gas and Steam Turbine Control Systems
  Provides reliable interface for critical turbine protection and control, ensuring system stability and operational safety.

• Wind Power Generation
  Manages discrete signals from turbine systems, supporting efficient operation and fault handling in wind energy applications.

• Compressor Control Systems
  Handles start/stop commands, safety interlocks, and status feedback in compressor control panels, enhancing equipment protection and operational efficiency.

• Oil and Gas Production Facilities
  Interfaces with field devices in upstream, midstream, and downstream oil & gas operations, ensuring safe and reliable processing.

• Chemical and Petrochemical Industries
  Enables precise control of valves, pumps, and other discrete devices in hazardous processing environments.

• Manufacturing and Automation
  Provides discrete control solutions for production lines, robotic systems, and material handling equipment, supporting increased productivity and reliability.

• Power Plants and Utility Infrastructure
  Ensures high-availability operation in power generation and distribution facilities, contributing to grid stability and operational security.

Why Choose GE Fanuc IS220PDIAH1B

• Proven Reliability
  With robust construction and an excellent track record in critical applications, the IS220PDIAH1B offers proven reliability where system uptime is vital.

• Superior Flexibility and Scalability
  Its compatibility with various GE Mark VIe systems and terminal boards allows easy integration into both new installations and system upgrades.

• Operational Efficiency
  Features like hot-swapping, built-in diagnostics, and redundant networking contribute to reduced maintenance costs, minimized downtime, and simplified troubleshooting.

• Safety and Compliance
  Certified for use in hazardous areas, the IS220PDIAH1B ensures compliance with stringent safety regulations, essential for industries with strict operational safety standards.

• Cost-Effective Lifecycle Management
  Its long service life and ease of maintenance make the IS220PDIAH1B a cost-effective choice over the long term, offering excellent return on investment.

• Enhanced System Integrity
  Deterministic Ethernet communication ensures fast and secure data transfer between the I/O modules and controllers, critical for time-sensitive industrial processes.

• Trusted Brand and Support
  GE's extensive experience and global support network guarantee quality service, spare parts availability, and technical expertise whenever needed.

Conclusion

The GE Fanuc IS220PDIAH1B is a high-performance, versatile, and highly reliable digital I/O module designed to meet the demands of modern industrial automation and control systems. Its combination of technical excellence, operational robustness, and ease of integration makes it the preferred choice for industries seeking enhanced system reliability, safety, and long-term value.
