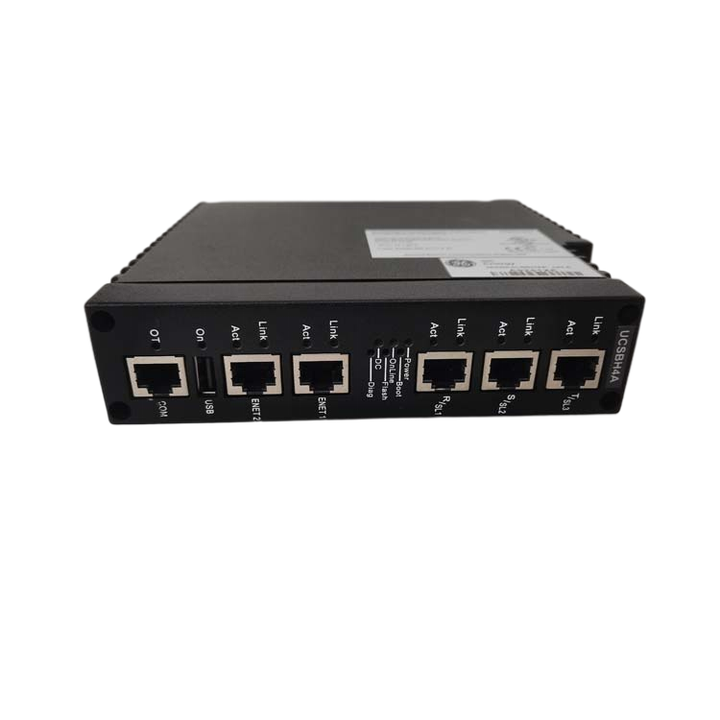

GE Fanuc IS420UCSBH3A

Product Overview

The GE Fanuc IS420UCSBH3A is a high-performance controller module that belongs to the Mark VIe control system family. This module acts as a Universal Control Station (UCS) and plays a central role in process control, especially in complex and mission-critical applications such as turbine and plant automation. It is built with an industrial-grade processor and designed for real-time processing, high reliability, and long-term operation in demanding environments.

The UCS module integrates seamlessly with the rest of the Mark VIe system through Ethernet-based communication networks, providing deterministic control and diagnostics. It hosts the control logic, manages input/output communications, performs real-time sequencing, and ensures safety through its support for functional safety standards.

Key Features

1. Processor and Architecture:

   • Equipped with a 1200 MHz Intel EP80579 processor, ensuring fast processing and efficient control execution.

   • Compact, fanless embedded design optimized for industrial control.

2. Memory and Storage:

   • Includes 1GB DDR3 RAM and 8GB of non-volatile flash storage, sufficient for hosting complex control applications, data logging, and system configurations.

3. Communications:

   • Supports Ethernet-based IONet protocol for high-speed communication with I/O packs, Human-Machine Interfaces (HMIs), and other controllers.

   • Dual redundant Ethernet ports for enhanced network reliability and reduced downtime.

4. Power Supply:

   • Operates on a nominal 24 VDC input with support for 18–36 VDC ranges, making it adaptable to various industrial power setups.

5. Safety and Reliability:

   • Complies with IEC 61508 standards and certified up to SIL 3, which qualifies it for use in safety instrumented systems.

   • Designed with redundancy and fault-tolerance features to support continuous process operation.

6. Environmental Specifications:

   • Operational temperature range: 0°C to +65°C, suitable for control rooms and enclosed panels.

   • Industrial hardened to withstand EMI/RFI and mechanical vibrations typically present in plant environments.

7. Form Factor and Installation:

   • Modular form with compact dimensions (approx. 20 cm x 11.5 cm x 5.7 cm).

   • DIN rail mountable, simplifying integration into control cabinets.

Applications

The IS420UCSBH3A module is widely used across industries that require advanced control, high availability, and safety compliance:

• Power Generation:

  • Central to control and protection in gas, steam, and hydro turbines.

  • Manages load control, startup sequencing, fuel systems, and emergency shutdowns.

• Oil & Gas:

  • Applied in upstream and downstream processes, such as compressor stations, refineries, and LNG facilities.

  • Handles process control, alarms, and interlock systems.

• Industrial Automation:

  • Used in continuous and batch process control environments, where real-time responsiveness and uptime are critical.

  • Suitable for applications in chemical plants, pulp & paper, and manufacturing lines.

• Safety Instrumented Systems (SIS):

  • Implemented as part of functional safety architectures where safety logic must be processed independently of standard control logic.

Why Choose GE Fanuc IS420UCSBH3A?

1. Proven Reliability in Demanding Conditions:

   • Designed to meet the rigorous standards of mission-critical systems.

   • Trusted by major OEMs and end users globally in the energy and industrial sectors.

2. Integrated Safety Compliance:

   • Full compliance with SIL 3 enables use in hazardous process environments without needing separate safety PLCs.

3. Robust Networking and Communication:

   • Native support for redundant, deterministic Ethernet protocols allows for secure and predictable data flow between control elements.

4. Scalability and System Integration:

   • Compatible with a broad range of I/O modules and HMI systems.

   • Flexible enough to be deployed in standalone systems or networked into larger distributed control architectures.

5. Simplified Maintenance and Diagnostics:

   • Built-in tools for real-time diagnostics, event logging, and software updates reduce mean time to repair (MTTR).

   • Designed with lifecycle management and ease of replacement in mind.

6. Long-Term Availability and Support:

   • Backed by GE's long history in industrial control and automation.

   • Availability of spare parts, software updates, and technical support ensures system longevity.

English Version Summary

GE Fanuc IS420UCSBH3A is a powerful and reliable controller module designed for the Mark VIe control system, offering industrial-grade processing, robust communication, and high safety compliance. With its compact design and wide application range—from turbine control to process automation—it meets the strict demands of industries that rely on continuous, safe, and accurate operation.

Its advanced communication capabilities, SIL 3 safety rating, and integration flexibility make it a top-tier choice for engineers and operators seeking robust performance in complex control systems.
