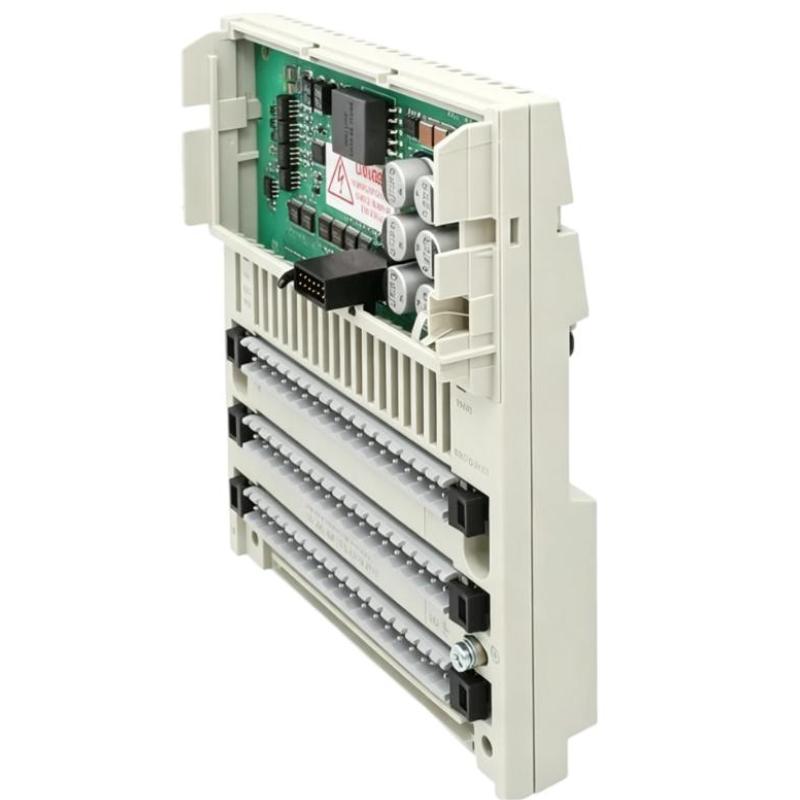

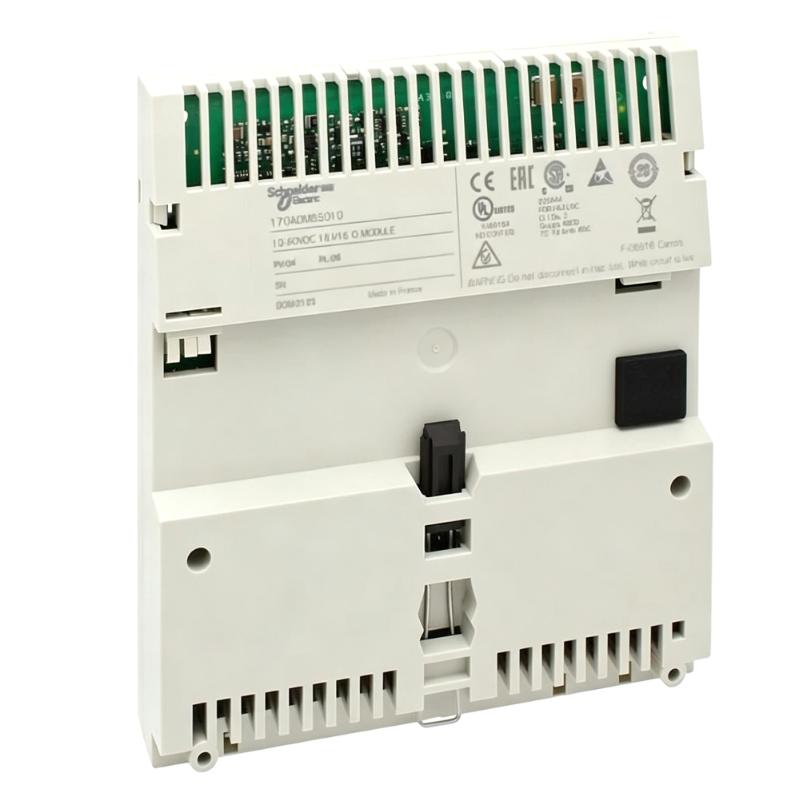

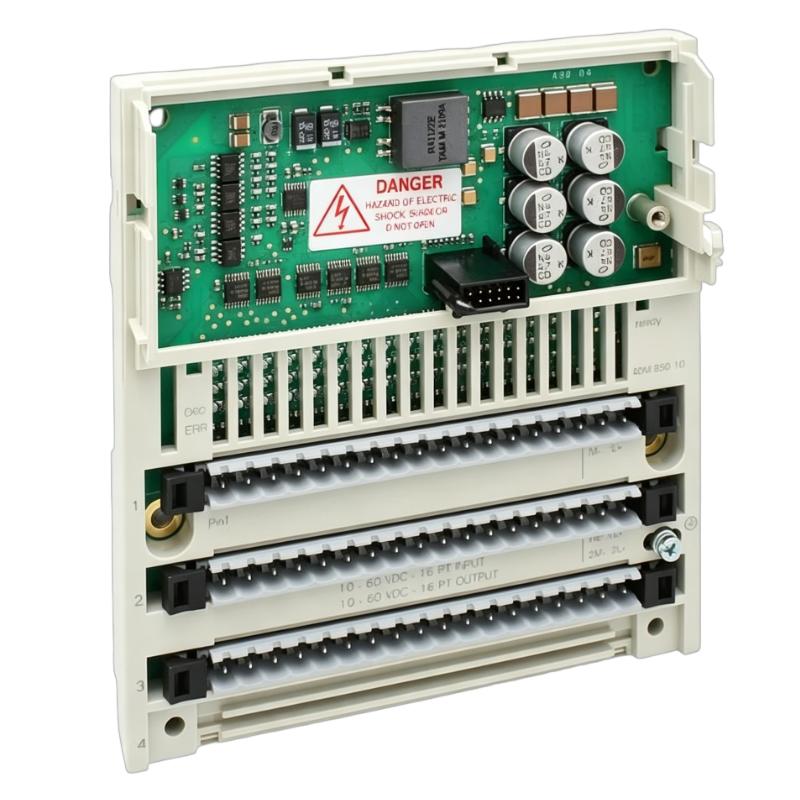

SCHNEIDER 170ADM85010

Product Overview

The Schneider Electric 170ADM85010 is a versatile digital input/output module from the Modicon Momentum I/O system. It provides 16 configurable digital I/O points, enabling it to function either as inputs or outputs depending on the application. This flexibility makes it ideal for a wide variety of industrial automation applications where modular, distributed control systems are required.

Designed to be installed on a Momentum I/O base, this module integrates seamlessly with Schneider Electric's automation architecture, supporting hot-swapping, easy commissioning, and high-density I/O wiring.

Key Features

• 16 Universal Digital Channels
  Configurable as input or output channels, supporting a wide range of digital signal applications.

• High-Density Compact Module
  Saves panel space and reduces wiring complexity.

• Hot-Swappable Design
  Allows replacement without shutting down the system, minimizing downtime.

• 24 V DC Operating Voltage
  Compatible with standard industrial power supplies and ensures low power consumption.

• Short Circuit and Overload Protection
  Protects output channels against damage and enhances safety.

• Robust Industrial Build Quality
  Withstands harsh conditions such as extreme temperatures, vibration, and electrical noise.

• Full Integration with Momentum Communication Bases
  Works with various communication processors (PCUs) supporting protocols like Modbus TCP and Ethernet/IP.

Applications

• Factory Automation: Interfaces with sensors, actuators, and control panels for process control.

• Building Management Systems: Manages lighting, HVAC, elevators, and security systems.

• Water and Wastewater Treatment: Controls pumps, valves, and monitors levels in treatment processes.

• Energy Management: Supervises switchgear and control systems in substations or microgrids.

• Public Infrastructure: Used in transportation systems for controlling barriers, lights, and monitoring.

• Renewable Energy: Supports control and data acquisition in wind farms and solar power plants.

Why Choose Schneider Electric 170ADM85010

• Flexible I/O Configuration: Adaptable to varying control requirements, reducing the need for multiple module types.

• Proven Reliability: Designed for continuous operation in demanding environments.

• Cost Efficiency: High-density I/O reduces hardware and installation costs.

• Seamless System Integration: Fully compatible with Momentum CPUs, bases, and communication modules.

• Serviceability: Easy to maintain and expand due to hot-swapping and modular design.

• Application Versatility: Suitable for a broad spectrum of automation tasks across industries.

Conclusion:
The Schneider 170ADM85010 module offers a powerful combination of I/O flexibility, system reliability, and industrial-grade durability. With 16 configurable channels, robust protection features, and integration capability with the Modicon Momentum platform, it is an excellent choice for engineers seeking scalable and maintainable automation solutions.
