Schneider BMXERT1604T

Product Overview

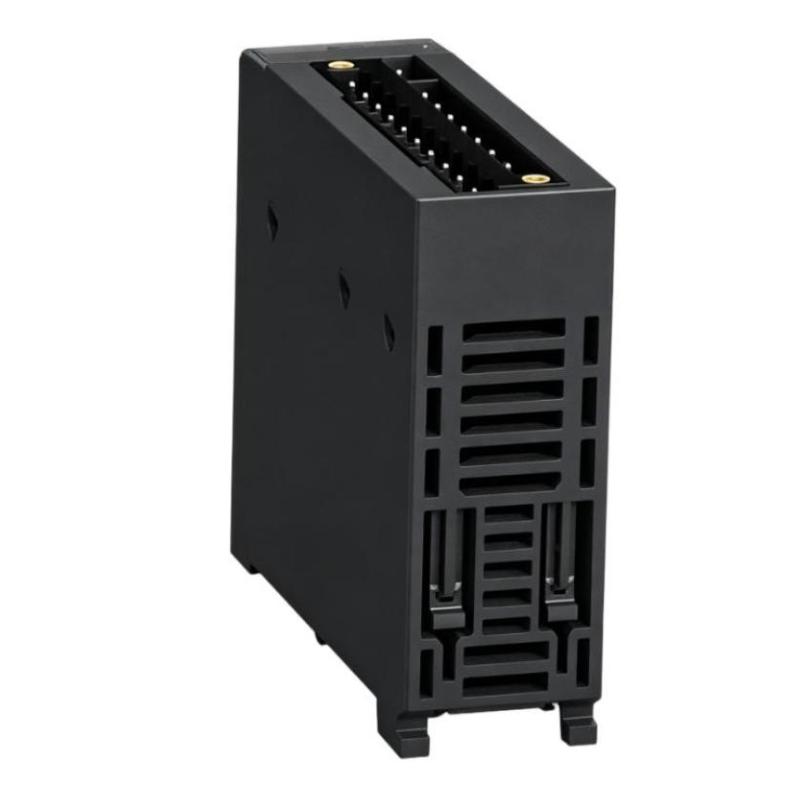

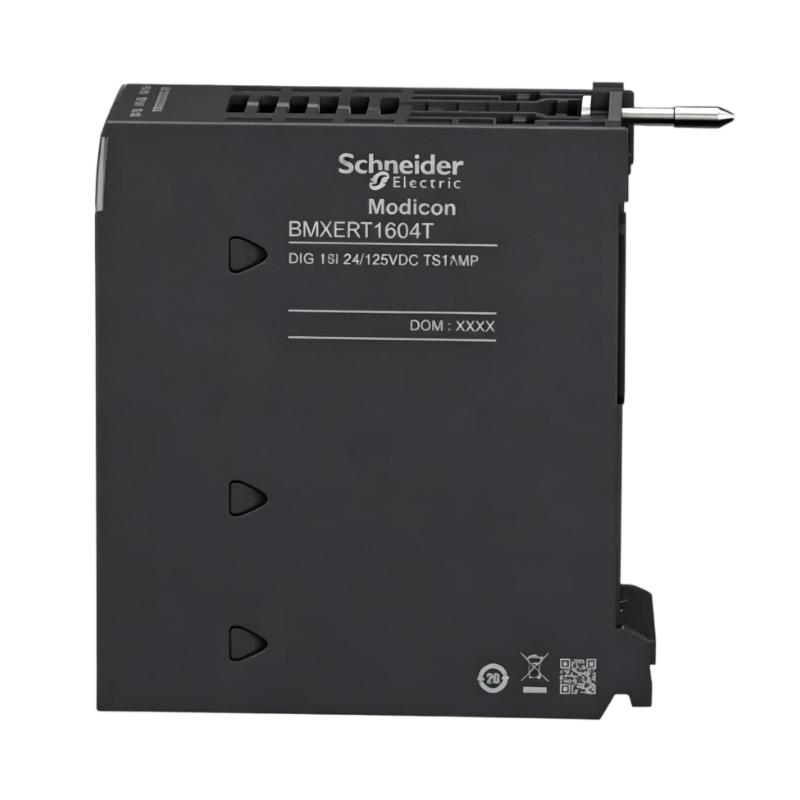

The Schneider Electric BMXERT1604T is a high-speed, 16-channel transistor output module designed for use within the Modicon M340 PLC platform. Built for demanding real-time control applications, it is particularly well-suited for environments that require fast, accurate, and reliable discrete output switching.

This module is equipped with 16 sourcing (positive logic) digital outputs, each capable of delivering high-speed control signals to a wide range of field devices, including solenoids, actuators, relays, and light indicators. Designed with robust industrial specifications, the BMXERT1604T offers exceptional electrical durability, thermal performance, and noise immunity, making it an ideal choice for use in harsh environments.

Incorporating advanced diagnostics, short-circuit protection, and high output frequency capabilities, the BMXERT1604T plays a critical role in automation systems where speed, reliability, and safety are paramount.

Main Features

1. High-Speed Transistor Outputs

• 16 discrete sourcing (positive logic) digital outputs.

• Capable of switching loads with extremely fast response times.

• Suitable for high-speed automation sequences such as packaging, sorting, or motion control.

2. Output Specifications

• Rated output voltage: 24 VDC.

• Maximum output current: 0.5 A per channel, up to a total of 4 A per module.

• Fast switching capability: response time < 0.1 ms (typical), ideal for real-time control tasks.

3. Advanced Diagnostics and Monitoring

• Built-in diagnostics to detect open circuits, short circuits, and thermal overloads.

• LED status indicators for each output channel for rapid troubleshooting.

• Overcurrent and overload protection on each channel increases system resilience.

4. Robust Industrial Design

• Complies with international standards for electromagnetic compatibility (EMC), mechanical shock, and vibration resistance.

• Wide operating temperature range: typically –25°C to +60°C.

• Modular, hot-swappable design allows easy replacement or maintenance without stopping the PLC.

5. Seamless Integration with Modicon M340

• Communicates directly with M340 CPUs via the local backplane bus.

• Fully supported in EcoStruxure Control Expert (formerly Unity Pro) for programming and diagnostics.

• I/O mapping easily handled via configuration software with no need for complex addressing.

6. Flexible Wiring and Mounting

• Standard 40-pin HE10-type connector simplifies field wiring.

• DIN rail mounting in standard M340 racks.

Applications

The BMXERT1604T is designed for a wide range of discrete output control tasks in industrial automation, including but not limited to:

1. Packaging Machinery

• Controls pneumatic actuators, solenoid valves, and other fast-switching output devices.

• Enables high-speed packaging, sorting, and labeling lines.

2. Material Handling and Conveying

• Interfaces with electric actuators and relays used in conveyor belts, diverters, pick-and-place arms, and robotic systems.

3. Automotive Assembly Lines

• Ideal for controlling devices in sequential manufacturing processes such as pressing, welding, or parts alignment.

4. Textile and Printing Machines

• Provides high-speed switching for motorized rollers, cutting units, and printing heads.

5. OEM Machinery

• Used in modular machines that require compact, high-performance digital output capability for controlling solenoids, pilot lights, and alarms.

6. Process Skids and Small Control Panels

• Fits easily into compact control architectures while delivering industrial-grade performance.

Why Choose Schneider BMXERT1604T

1. Optimized for High-Speed Control

• The module is designed to deliver fast switching responses—crucial in automation scenarios where milliseconds matter. Its ability to support real-time output commands makes it ideal for rapid process cycles.

2. Reliability and Protection

• Each output channel is protected against overload, thermal faults, and wiring errors, ensuring long-term reliability even in demanding environments.

3. Effortless Integration with Schneider Ecosystem

• Seamless compatibility with Modicon M340, Unity Pro / EcoStruxure Control Expert, and other Schneider automation tools allows simplified programming, diagnostics, and maintenance.

4. Compact and Scalable

• Its space-saving form factor allows dense I/O configurations in limited space, making it a favorite in control panels and OEM machines.

5. Minimized Downtime

• LED indicators and internal diagnostics make it easy to isolate and fix output issues quickly, reducing production losses due to troubleshooting delays.

6. Industrial-Grade Engineering

• Designed for continuous use in industrial environments with exposure to mechanical vibrations, electrical noise, and temperature fluctuations.

7. Trusted Schneider Quality

• Backed by Schneider Electric’s global presence, technical support, and long-term product availability—ensuring peace of mind for both system integrators and end users.

Conclusion

The Schneider Electric BMXERT1604T is a rugged, high-speed, 16-channel transistor output module purpose-built for demanding automation tasks within the Modicon M340 environment. With its blend of performance, reliability, diagnostics, and seamless integration, it is the preferred choice for machine builders, system integrators, and end-users looking to implement fast, flexible, and fault-tolerant control systems. Whether you're automating a high-speed conveyor or a precision manufacturing station, the BMXERT1604T ensures your outputs are delivered with confidence and precision.
