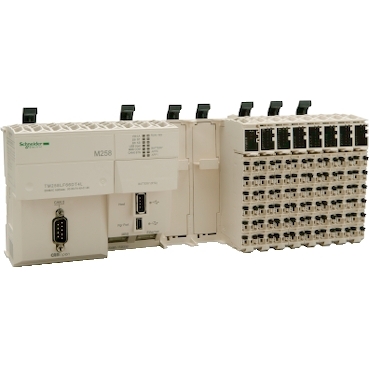

Schneider TM258LF66DT4L

Product Overview

The TM258LF66DT4L logic controller is engineered to provide efficient and reliable control for complex machinery. It features a compact design with a base configuration of 66 discrete inputs/outputs and 4 analog inputs, all operating at 24V DC. The controller's architecture allows for scalability, supporting expansion from 42 to 2400 I/O points, making it suitable for a wide range of applications. It integrates seamlessly with Schneider Electric's EcoStruxure Machine Expert software, facilitating intuitive programming and configuration.

Key Features

• High-Speed Processing: With a processing time of 22 microseconds per Boolean instruction, the TM258LF66DT4L ensures rapid response times, essential for time-critical applications.

• Comprehensive I/O Capabilities: The controller includes 66 discrete I/O points and 4 analog inputs, with support for current (0–20 mA, 4–20 mA) and voltage (±10 V) signals, providing flexibility in handling various sensor types.

• Advanced Communication Interfaces: Equipped with multiple communication ports, including Ethernet (Modbus TCP/IP), serial (RS-232/RS-485), USB, and CANopen, the controller facilitates seamless integration into diverse network architectures.

• Robust Memory and Data Handling: Featuring 128 MB of flash memory and 64 MB of internal RAM, the TM258LF66DT4L supports complex applications and data-intensive processes. It also includes a real-time clock with minimal drift, ensuring accurate time-stamping of events.

• Flexible Mounting and Expansion: Designed for DIN rail mounting, the controller supports expansion through TM5 modules, allowing for customized configurations to meet specific application needs.

• Environmental Resilience: The TM258LF66DT4L operates reliably in a wide temperature range (0–60°C) and offers resistance to vibrations and electrical disturbances, ensuring durability in harsh industrial environments.

Applications

The versatility and performance of the TM258LF66DT4L make it suitable for a broad spectrum of industrial applications, including:

• Packaging Machinery: Managing complex packaging processes with high-speed and precision requirements.

• Material Handling Systems: Controlling conveyors, sorters, and automated storage systems for efficient logistics operations.

• Textile Industry: Automating textile manufacturing processes to enhance productivity and quality.

• Food and Beverage Processing: Ensuring hygienic and precise control in food production lines.

• Automotive Assembly: Coordinating robotic arms and assembly lines for efficient vehicle manufacturing.

Why Choose Schneider TM258LF66DT4L

• Performance: Delivers high-speed processing and precise control, essential for modern automation needs.

• Scalability: Offers expandable I/O options, allowing systems to grow with operational demands.

• Ease of Use: Integrated with EcoStruxure Machine Expert, providing a user-friendly programming environment.

• Reliability: Built to withstand industrial conditions, ensuring long-term operational stability.

• Compliance: Meets international standards and certifications, making it suitable for global applications.

• Environmental Responsibility: Part of Schneider Electric's Green Premium program, emphasizing sustainability and reduced environmental impact.
