Schneider TSXDEY16D2

Product Overview

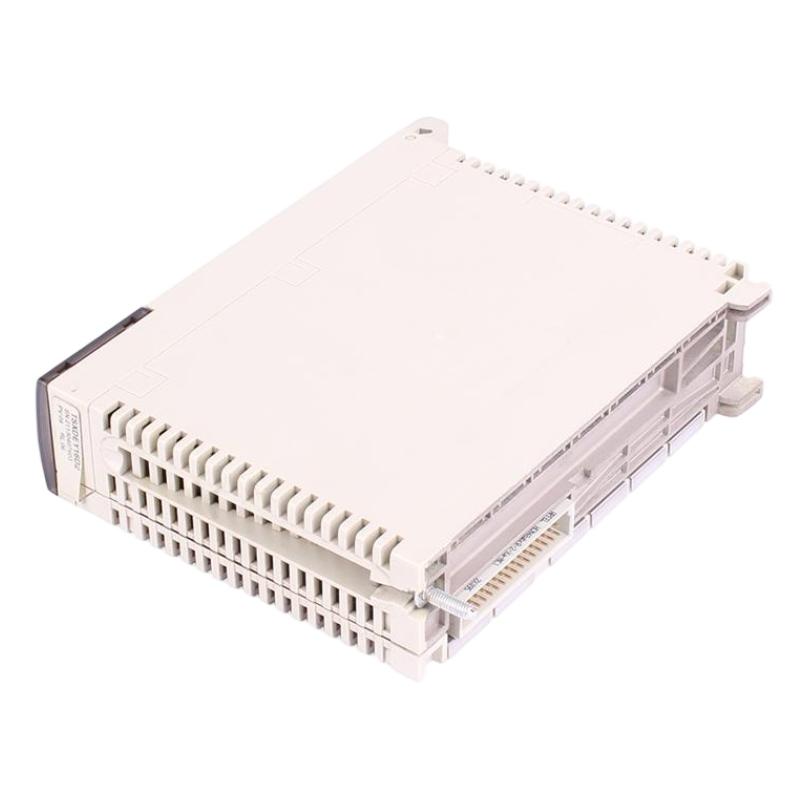

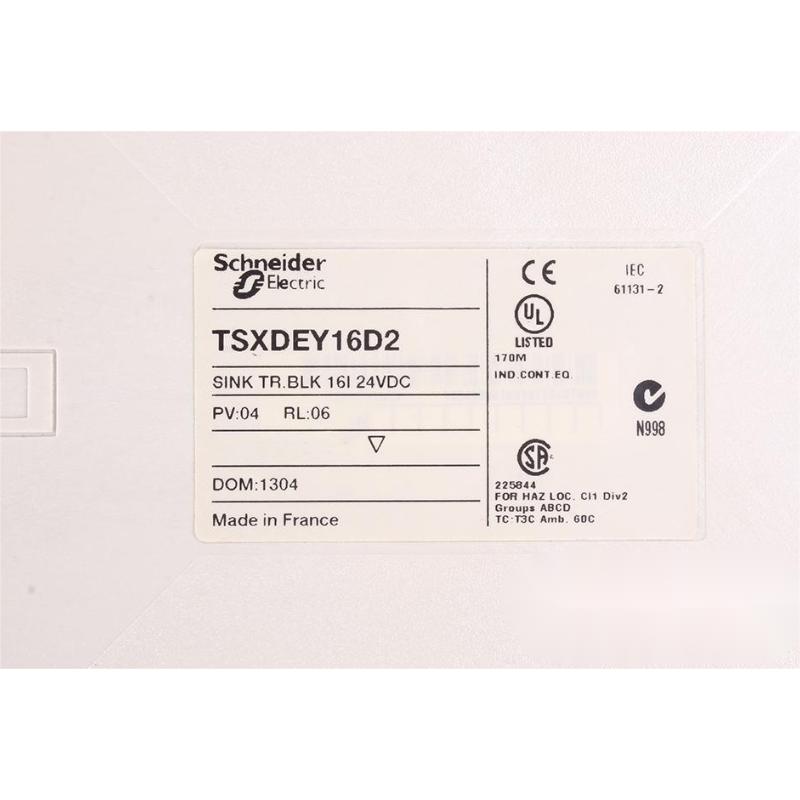

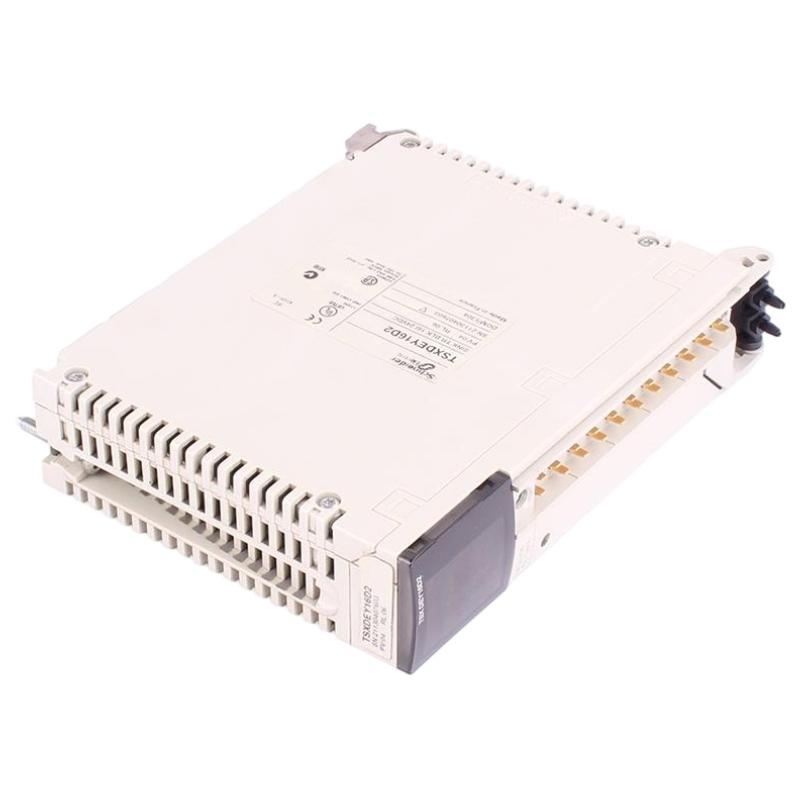

The Schneider Electric TSXDEY16D2 is a 24V DC discrete input module from the Modicon Premium automation platform. It is designed to interface field input signals with the central processing unit (CPU) of a PLC system. This module allows up to 16 isolated input points to be connected to a Modicon Premium PLC, which then processes the digital signals for monitoring, control, and automation of industrial machinery and systems. The TSXDEY16D2 is DIN rail-mounted and provides a compact, modular solution for scalable control architectures.

This module is widely used in industrial automation systems where fast and reliable signal acquisition from field devices (e.g., sensors, switches, pushbuttons) is essential.

Key Features

1. 16 Discrete Inputs (24V DC)
   The module supports 16 input channels, which makes it ideal for medium-density signal acquisition from field devices.

2. Positive Logic Inputs
   Inputs are designed for positive logic (sourcing), meaning it accepts signals from sinking-type field devices.

3. Input Filtering and Debouncing
   Built-in hardware filtering minimizes signal noise and eliminates spurious inputs caused by mechanical contact bounce, ensuring reliable signal acquisition.

4. Module and Channel Status LEDs
   Each input channel has a dedicated LED for real-time status indication, making diagnostics and maintenance faster and easier.

5. Isolation between Channels and Logic Circuits
   The inputs are optically isolated from the PLC backplane and CPU to prevent electrical interference and improve system safety.

6. DIN Rail Mounting and Compact Design
   Compact form factor ensures efficient use of panel space, and standardized DIN rail mounting simplifies installation.

7. Fast Response Time
   The TSXDEY16D2 offers fast signal response times, essential for applications that require real-time monitoring and control.

8. Compatibility
   Fully compatible with Modicon Premium PLCs and other Schneider Electric modules, enabling seamless integration into existing systems.

Applications

The TSXDEY16D2 is used in various industrial sectors that require reliable digital signal acquisition and control. Typical applications include:

• Manufacturing and Assembly Lines
  Detects inputs from limit switches, sensors, and emergency stop buttons, enabling accurate control of actuators and conveyors.

• Material Handling Systems
  Interfaces with photoelectric sensors, position sensors, and mechanical stops in sorting and transport systems.

• Water Treatment Plants
  Collects status signals from pumps, valve positions, and level sensors, contributing to automated water management systems.

• Building Automation
  Used in access control, lighting control, and HVAC systems to receive on/off signals from motion detectors, keypads, and switches.

• Packaging Machines
  Handles high-speed inputs from presence detectors, label sensors, and other binary signal devices.

• Automotive Industry
  Widely applied in vehicle assembly lines to receive inputs from operator panels, proximity sensors, and safety interlocks.

Why Choose Schneider TSXDEY16D2?

1. High Reliability in Industrial Environments
   The TSXDEY16D2 is engineered for durability and consistent performance in harsh conditions, such as electrical noise, temperature variation, and vibration.

2. Seamless Integration with Schneider Systems
   Designed specifically for the Modicon Premium family, this module ensures full hardware and software compatibility, reducing configuration time and integration risks.

3. Efficient Troubleshooting and Maintenance
   Channel-specific LED indicators enable quick identification of input status or faults, reducing downtime during system failures or commissioning.

4. Scalable and Modular Design
   Enables easy expansion of the control system. Multiple TSXDEY16D2 modules can be combined with other discrete, analog, or communication modules in a unified control architecture.

5. Optimized for Cost and Space
   With 16 input channels in one module, it provides high I/O density per panel space, reducing hardware costs and simplifying wiring.

6. Supported by Schneider Electric's Global Network
   Users benefit from worldwide availability, technical support, and a vast ecosystem of automation tools and components.

7. Built-in Electrical Isolation for Safety and Protection
   Ensures that voltage spikes or ground loops in field wiring do not damage the central control system.

Conclusion

The Schneider Electric TSXDEY16D2 discrete input module is a compact, efficient, and reliable solution for digital signal acquisition in a wide range of industrial automation systems. With 16 channels of 24V DC inputs, optical isolation, fast response time, and seamless compatibility with Modicon Premium PLCs, it offers excellent value for engineers and system integrators. Whether you are designing a new control system or expanding an existing one, the TSXDEY16D2 delivers performance, dependability, and scalability—key factors in today’s demanding industrial environments.
