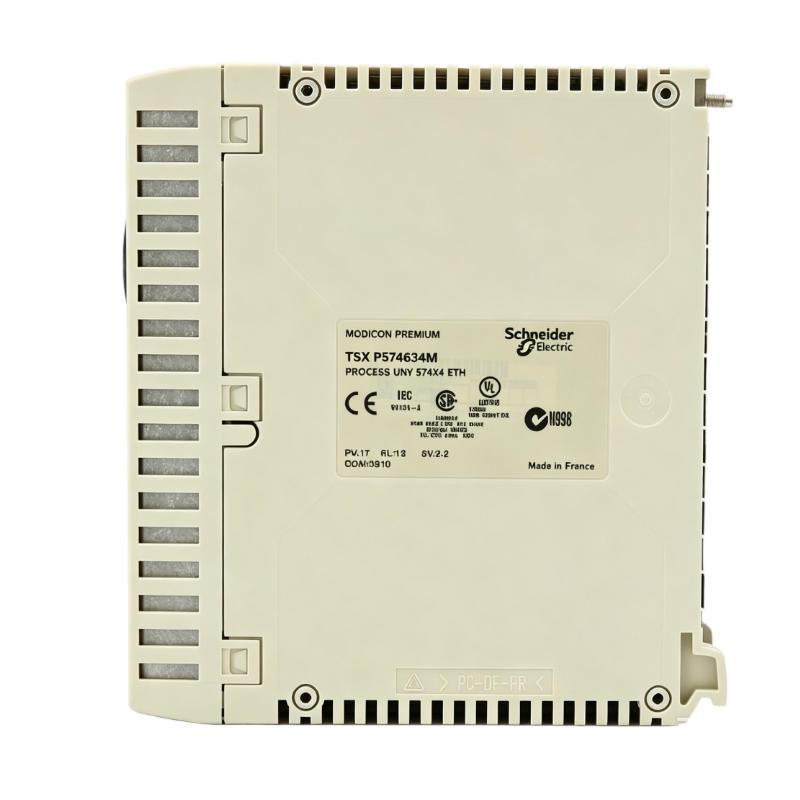

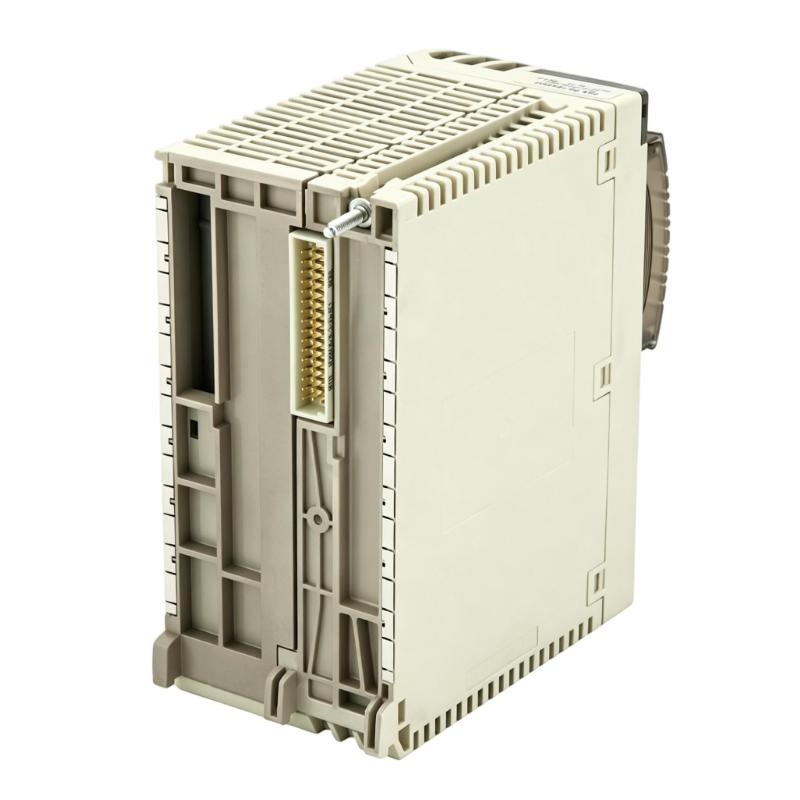

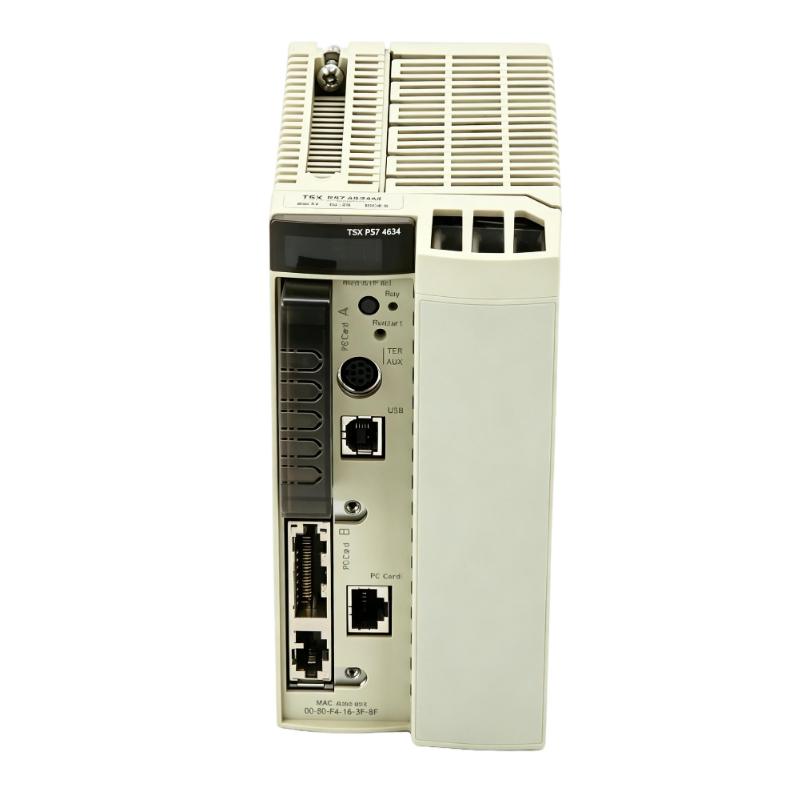

Schneider TSXP574634M

Product Overview

The Schneider Electric TSXP574634M is a high-performance programmable logic controller (PLC) processor module from the Modicon Premium automation platform. Designed to meet the demands of advanced industrial control systems, this processor offers powerful computing capabilities, large memory capacity, and extensive connectivity options. It supports complex logic operations, data management, real-time control, and advanced communication protocols—making it ideal for medium to large-scale automation projects.

With integrated Ethernet and Modbus communication ports, the TSXP574634M enables seamless integration with SCADA systems, remote I/O, and third-party devices. Its design is aimed at improving system reliability, reducing cycle times, and enhancing system diagnostics, while maintaining flexibility and modularity for various types of applications.

Key Features

1. Processor Performance

• CPU Type: Premium-class 32-bit processor

• Execution Speed: Fast scan cycle time suitable for complex, high-speed control processes

• Instruction Execution Time: Approximately 0.11 µs for Boolean instructions

• Program Memory: 768 KB internal RAM, supporting large user applications

2. Communication Capabilities

• Integrated Ethernet Port: Enables TCP/IP-based networking for SCADA, MES, and remote access

• Integrated Modbus Port: Supports Modbus RTU for device-to-device communication

• Optional Communication Modules: Compatible with CANopen, Profibus DP, AS-i, and Fipio modules for extended communication needs

3. Memory and Data Handling

• Expandable Memory: Supports memory expansion via PCMCIA cards

• Data Storage: Handles large volumes of data for logging, batch control, or trend analysis

• Battery-backed RAM: Retains data during power loss

4. Diagnostics and Maintenance

• LED Indicators: Status LEDs for power, run, fault, and communication states

• System Monitoring: Advanced diagnostics for error detection, event logging, and performance monitoring

• Hot Swapping: Modules can be replaced without shutting down the system

5. Integration and Compatibility

• Modicon Premium Platform: Fully compatible with Premium series I/O modules and accessories

• Unity Pro / EcoStruxure Control Expert Software: Supports structured programming (IEC 61131-3 standards), user-friendly debugging, and real-time monitoring

6. Mechanical and Environmental

• Compact Design: Rack-mountable, designed for tight control panel installations

• Operating Temperature: 0 to 60°C

• Certifications: CE, UL, CSA, and industry-compliant standards for safety and emissions

Applications

The TSXP574634M is built to serve in a wide range of industrial sectors where advanced automation and precise control are crucial:

1. Manufacturing and Assembly Lines

• High-speed logic execution makes it ideal for automotive production, electronics assembly, and metal fabrication systems.

2. Process Control

• Suited for industries such as petrochemical, water treatment, and pharmaceuticals where reliable control of temperature, pressure, flow, and other continuous processes is required.

3. Infrastructure and Utilities

• Used in smart grid control, energy distribution, tunnel management systems, and HVAC regulation for large facilities.

4. Packaging and Material Handling

• Facilitates motion control, coordination of conveyor systems, and robotic palletizing.

5. Building Automation and Facility Management

• Enables building-wide integration of lighting, HVAC, fire systems, and access control through centralized management.

Why Choose Schneider TSXP574634M

1. Exceptional Processing Power

• With a fast scan time and high instruction processing capability, this module handles time-sensitive control tasks effortlessly, ensuring smooth and responsive system behavior.

2. Built-In Communication Versatility

• Ethernet and Modbus ports come pre-integrated, reducing the need for external communication modules and lowering installation costs. The wide compatibility also ensures flexibility with different device types and industrial networks.

3. Scalable and Modular Design

• Supports a modular system architecture, allowing users to scale their control systems as needed. Whether starting small or expanding over time, the TSXP574634M adapts without needing a complete redesign.

4. Superior Diagnostics and Monitoring

• Enhanced fault detection and performance logging features reduce downtime and make troubleshooting quicker and more efficient. This is particularly beneficial in complex automation systems with many interconnected devices.

5. Proven Reliability

• Built under the well-established Modicon platform known for durability and longevity in the field. It has a long operational life and is backed by industrial certifications, making it a trusted choice in mission-critical environments.

6. Integration with Modern Tools

• Works seamlessly with Schneider’s engineering environment (EcoStruxure Control Expert), which supports structured programming, simulation, and remote diagnostics. This helps reduce development time and ensures a higher-quality automation solution.

Conclusion

The Schneider Electric TSXP574634M is a top-tier PLC processor module designed for advanced industrial control systems. Its blend of processing power, flexible communication, robust diagnostics, and seamless integration capabilities makes it an optimal solution for a broad spectrum of automation applications. From complex process industries to infrastructure automation and high-speed manufacturing, it provides the performance and reliability engineers depend on to keep systems running efficiently and intelligently.
